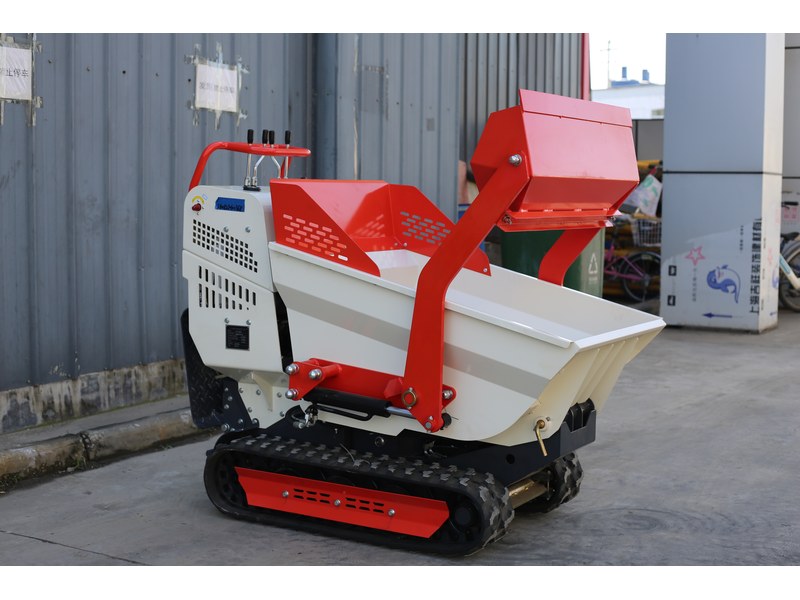

YH-500 Mini Dump Truck

Technical Specifications

• Net weight: 414kg
• Max load capacity: 500kg
• Cargo box capacity: 200dm³
• Chassis width: 700mm
• Track width: 180mm
• Track ground contact length: 900mm
• Chassis ground clearance: 110mm
• Hydraulic: self-dumping
• Dump angle: 90°
• Discharge ground clearance: 260mm
• Travel speed: 2.88km/h
• Min turning radius: 1.15m
• Track centre distance: 520mm
• Gradeability: 20°
• Power type: single-cylinder air-cooled four-stroke
• Total displacement: 203CC
• Rated power: 6.5HP/3600rpm
• Fuel type: 92# gasoline
• Fuel tank capacity: 3.6L
• Engine: optional Briggs & Stratton 19N1 / Kop 173 / Runtong 212cc ( others
• Engine: please enquire separately )
• Overall dimensions: 2050*880*1300mm
• Cargo box / tank dimensions: 1050*730*730mm
• Fumigation-free wooden case packing: 1630*940*1450mm
• Steel frame stack packing: 1570*980*2480mm

Product Overview

The YH-500 Mini Dump Truck is supplied by Jining Yuanheng Machinery Manufacturing Co., Ltd, listed under Землеройная техника / Mini Dump Trucks. Key specifications: Net weight 414kg; Max load capacity 500kg; Cargo box capacity 200dm³; Chassis width 700mm; Track width 180mm; Track ground contact length 900mm.

Key Features

• Net weight: 414kg
• Max load capacity: 500kg
• Cargo box capacity: 200dm³
• Chassis width: 700mm
• Track width: 180mm

Applications

• Material handling in narrow orchards, farmland and hillside sites
• Short-haul transfer on construction sites and in sand and gravel yards
• Clearing at livestock farms and waste transfer
