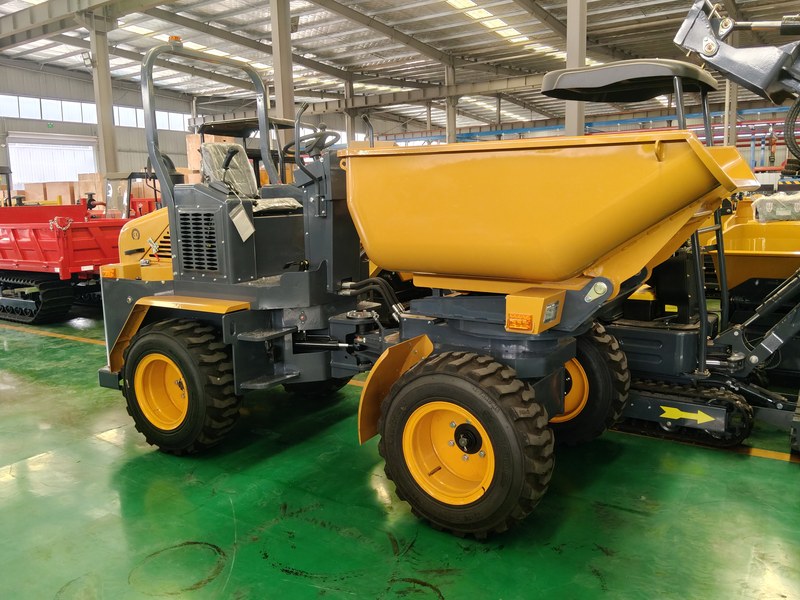

YH-3000 Mini Dump Truck

Technical Specifications

• Body weight: 2150kg
• Max load capacity: 3000kg
• Cargo box capacity: 1.28m³
• Dump angle: 90°
• Cargo box rotation angle: 180°
• Discharge height: 750mm
• Ground clearance: 290mm
• Turning radius: 5000mm
• Tipping distance: 610mm
• Travel speed: 12km/h
• Gradeability: 30°
• Tire model: 12-16.5
• Dimensions: 3760*1500*2450mm
• Cargo box dimensions: 1730*1280*600mm
• Overall width: 1500mm
• Engine model: Kubota D1105
• Power type: three-cylinder water-cooled
• Rated power: 25HP/2800rpm
• Fuel type: diesel
• Fuel tank capacity: 35L
• Hydraulic tank capacity: 35L

Product Overview

The YH-3000 Mini Dump Truck is supplied by Jining Yuanheng Machinery Manufacturing Co., Ltd, listed under Землеройная техника / Mini Dump Trucks. Key specifications: Body weight 2150kg; Max load capacity 3000kg; Cargo box capacity 1.28m³; Dump angle 90°; Cargo box rotation angle 180°; Discharge height 750mm.

Key Features

• Body weight: 2150kg
• Max load capacity: 3000kg
• Cargo box capacity: 1.28m³
• Dump angle: 90°
• Cargo box rotation angle: 180°

Applications

• Material handling in narrow orchards, farmland and hillside sites
• Short-haul transfer on construction sites and in sand and gravel yards
• Clearing at livestock farms and waste transfer
