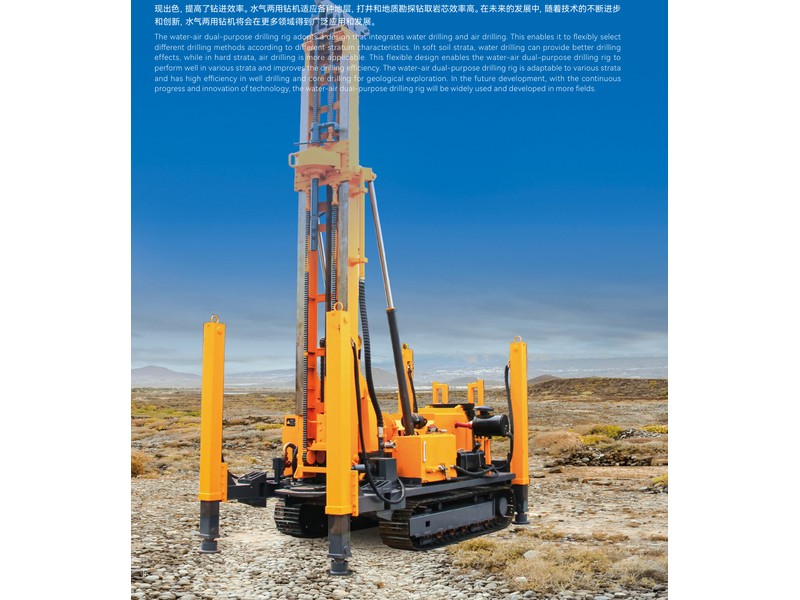

HWDL500 Water / Air Dual-Purpose Drill Rig

Technical Specifications

• Diameter: Ø75-Ø350 mm
• Drilling angle: 75-90 °
• Lifting force: 240 kN
• Max torque: 14000 N·m diesel
• Rated power: 92 kW
• Rated speed: 2400 r/min
• Mechanical winch single-rope lifting force: 8 Ton
• Drill rod diameter: 50/60/76/89 NQ/HQ/PQ mm
• Mud pump: BW200 / BW250 / BW320
• Travel speed: 0-2 km/h
• Gradeability: 25-30 °
• Transport dimensions: 6300×2000×2650 mm
• Working dimensions: 3800×2500×8500 mm
• Operating weight: 11500 kg

Product Overview

The HWDL500 Water / Air Dual-Purpose Drill Rig is supplied by Shandong Hengwang Group Co., Ltd, listed under Drilling and Piling Equipment / Water Well Drilling Rigs. Key specifications: Diameter Ø75-Ø350 mm; Drilling angle 75-90 °; Lifting force 240 kN; Max torque 14000 N·m diesel; Rated power 92 kW; Rated speed 2400 r/min.

Key Features

• Diameter: Ø75-Ø350 mm
• Drilling angle: 75-90 °
• Lifting force: 240 kN
• Max torque: 14000 N·m diesel
• Rated power: 92 kW

Applications

• Rural and industrial water well drilling
• Wireline core drilling for geological exploration
• Geothermal well and hydrological observation well drilling
• Foundation grouting and anchor hole drilling
• Drilling through alternating soft and hard strata

Categories

Drilling and Piling Equipment / Water Well Drilling Rigs
