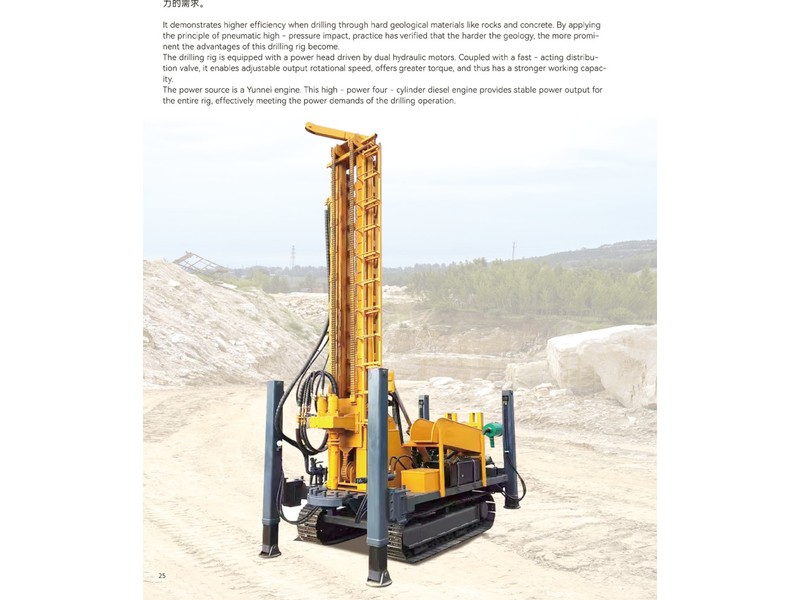

HQZ-800L Steel-Track Pneumatic Drill Rig

Technical Specifications

• Model: HQZ800L
• Mast: 6m
• Chassis: steel track
• Drilling diameter: (㎜) 130-350
• Drilling depth (m): 800
• Single feed stroke (m): 6.6
• Travel speed (km/h): 2.5
• Max gradeability (unladen): 30
• Engine brand: Yuchai
• Engine power (kW): 150
• Working air pressure (MPa): 1.7-3.5
• Air consumption: (m³/min) 17-42
• Drill rod diameter: (㎜) 102/108/114
• Drill rod length (m): 3.0/6.0
• Lifting force (t): 30
• Rotation speed (rpm): 55-120
• Rotation torque: (N.m) 10000-13200
• Overall dimensions: (㎜) 6200*2300*2950

Product Overview

The HQZ-800L Steel-Track Pneumatic Drill Rig is supplied by Shandong Hengwang Group Co., Ltd, listed under Drilling and Piling Equipment / DTH Hammers and Core Drills. Key specifications: Model HQZ800L; Mast 6m; Chassis steel track; Drilling diameter (㎜) 130-350; Drilling depth (m) 800; Single feed stroke (m) 6.6.

Key Features

• Model: HQZ800L
• Mast: 6m
• Chassis: steel track
• Drilling diameter: (㎜) 130-350
• Drilling depth (m): 800

Applications

• Blasting hole drilling in open-pit mines
• Rock works and foundation pit drilling
• Foundation holes for water conservancy and power projects
• Rural roads and small earthwork projects
