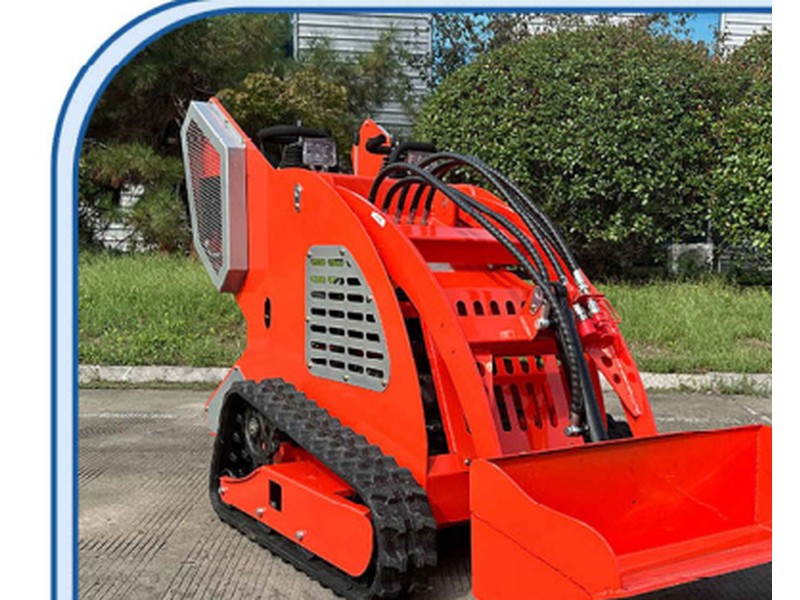

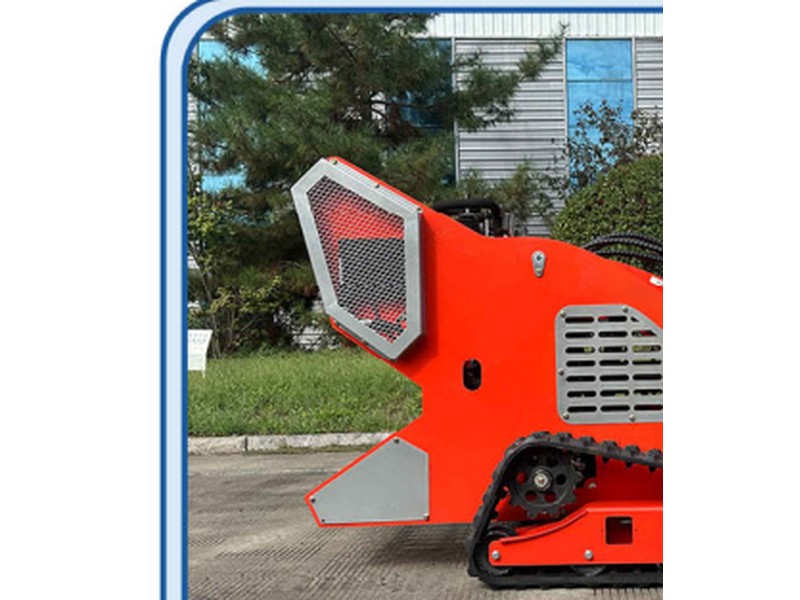

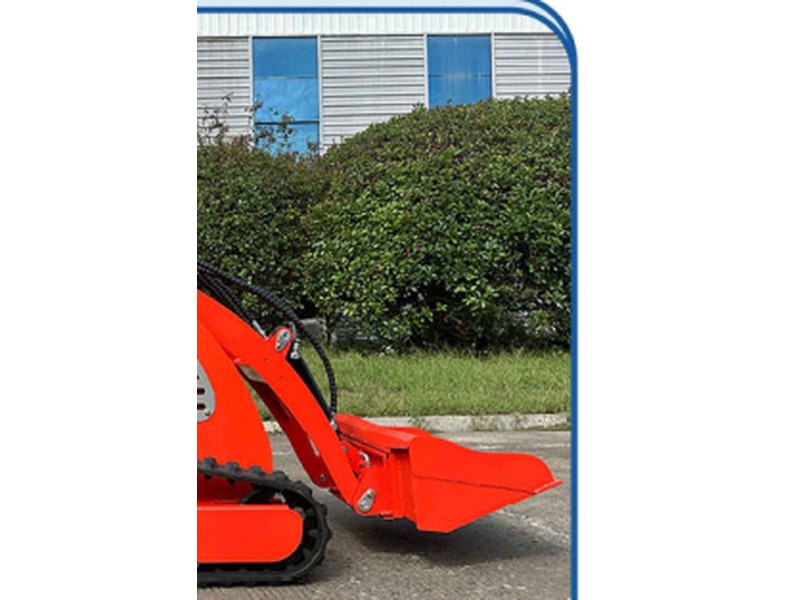

ME270 Skid Steer Loader

Technical Specifications

• Engine: Runtong R210
• Max horsepower: 4.5 ps
• Max power: 3.4 KW
• Cylinders: 1
• Max speed: 1800 rpm
• Displacement: 163 cc
• Type: gasoline
• Load capacity: 500 kg
• Length: 1440 mm
• Width: 900 mm
• Travel speed: 0-4 km/h
• Max breakout force: 11.5
• Hydraulic flow: 75.4 L/min
• Hydraulic tank capacity: 12 L
• Max working height: 2050 mm
• Max pin height: 1460 mm
• Max discharge height: 1200 mm
• Dump reach at max height: 460 mm
• Bucket dump angle: 130°
• Bucket rollback angle at max height: 30°
• Ground clearance: 100 mm
• Overall width: 1000 mm
• Bucket width: 930 mm
• Turning radius: 1100 mm
• Total weight: 1850 kg

Product Overview

The ME270 Skid Steer Loader is supplied by Shandong Donggong Engineering Machinery Co., Ltd, listed under Loaders and Handling Equipment / Skid Steer Loaders. Key specifications: Engine Runtong R210; Max horsepower 4.5 ps; Max power 3.4 KW; Cylinders 1; Max speed 1800 rpm; Displacement 163 cc.

Key Features

• Engine: Runtong R210
• Max horsepower: 4.5 ps
• Max power: 3.4 KW
• Cylinders: 1
• Max speed: 1800 rpm

Applications

• Clearing and loading on farms and ranches
• Municipal and landscaping work
• Multi-purpose work in confined sites
