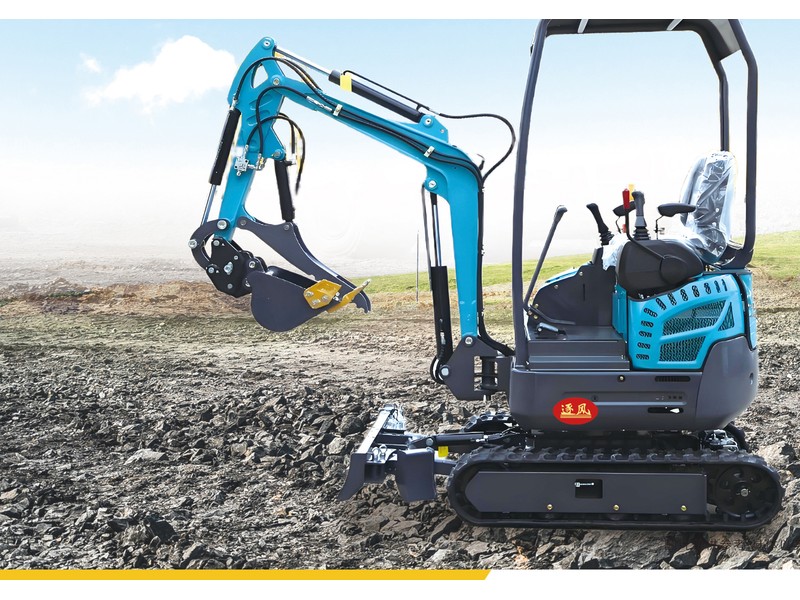

ZM18 Mini Excavator
SKU: ZM18
ZM18 Mini Excavator — Operating weight (kg) 1285, Transport length (mm) 2600, Packing length (mm) 3360, Overall width (mm) 1300. Supplied by Shandong Zhongmei Engineering Machinery Co., Ltd.
Product Details
Technical Specifications
- Operating weight (kg): 1285
- Transport length (mm): 2600
- Packing length (mm): 3360
- Overall width (mm): 1300
- Overall height (mm): 2344
- Turntable width (mm): 1050 chassis_
- Overall width (mm): 1300
- Track width (mm): 180 wheelbase_mm 1082 track_gauge_mm 1120 platform_ground_clearance_mm 400 min_ground_clearance_mm 145
- Max digging height (mm): 2880
- Max unloading height (mm): 2100
- Max excavation depth (mm): 2150 max_vertical_digging_depth_mm 1760
- Max digging radius (mm): 3330 min_rotation_radius_mm 1555
- Engine brand: Changchai 390Q emission China II
- Engine power: 20KW/2300rpm horsepower_hp 27 telescopic_side_swing - bucket_size_mm 400
- Bucket capacity (m³): 0.035
Product Overview
The ZM18 Mini Excavator is supplied by Shandong Zhongmei Engineering Machinery Co., Ltd, listed under Earthmoving Machinery / Mini Excavators. Key specifications: Operating weight (kg) 1285; Transport length (mm) 2600; Packing length (mm) 3360; Overall width (mm) 1300; Overall height (mm) 2344; Turntable width (mm) 1050 chassis_.
Key Features
- Operating weight (kg): 1285
- Transport length (mm): 2600
- Packing length (mm): 3360
- Overall width (mm): 1300
- Overall height (mm): 2344
Applications
- Trenching and fertilising in orchards and greenhouses
- Municipal pipe trench and cable trench excavation
- Small-scale earthmoving and demolition in rural areas
Categories
Earthmoving Machinery / Mini Excavators
Product Details
Product Reference
- Product name: ZM18 Mini Excavator
- SKU / Model code: ZM18
- Categories: Earthmoving Machinery / Mini Excavators
- Supplier: MachEquipPro
