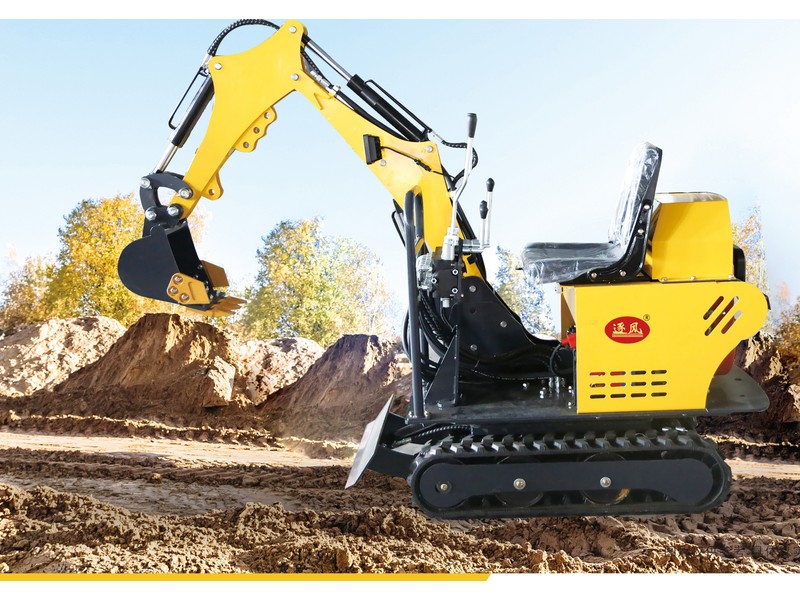

ZM09 Mini Excavator

Technical Specifications

• Operating weight (kg): 680
• Transport length (mm): 2500
• Packing length (mm): 2700
• Overall width (mm): 720
• Overall height (mm): 2000
• Turntable width (mm): 700 chassis_
• Overall width (mm): 720
• Track width (mm): 150 wheelbase_mm 860 track_gauge_mm 550 platform_ground_clearance_mm 350 min_ground_clearance_mm 100
• Max digging height (mm): 2800
• Max unloading height (mm): 1880
• Max excavation depth (mm): 960 max_vertical_digging_depth_mm 430
• Max digging radius (mm): 2330 min_rotation_radius_mm 730
• Engine brand: UP 192F emission China II
• Engine power: 8KW/3600rpm horsepower_hp 11 telescopic_side_swing - bucket_size_mm 300
• Bucket capacity (m³): 0.02

Product Overview

The ZM09 Mini Excavator is supplied by Shandong Zhongmei Engineering Machinery Co., Ltd, listed under Earthmoving Machinery / Mini Excavators. Key specifications: Operating weight (kg) 680; Transport length (mm) 2500; Packing length (mm) 2700; Overall width (mm) 720; Overall height (mm) 2000; Turntable width (mm) 700 chassis_.

Key Features

• Operating weight (kg): 680
• Transport length (mm): 2500
• Packing length (mm): 2700
• Overall width (mm): 720
• Overall height (mm): 2000

Applications

• Trenching and fertilising in orchards and greenhouses
• Municipal pipe trench and cable trench excavation
• Small-scale earthmoving and demolition in rural areas

Categories

Earthmoving Machinery / Mini Excavators
