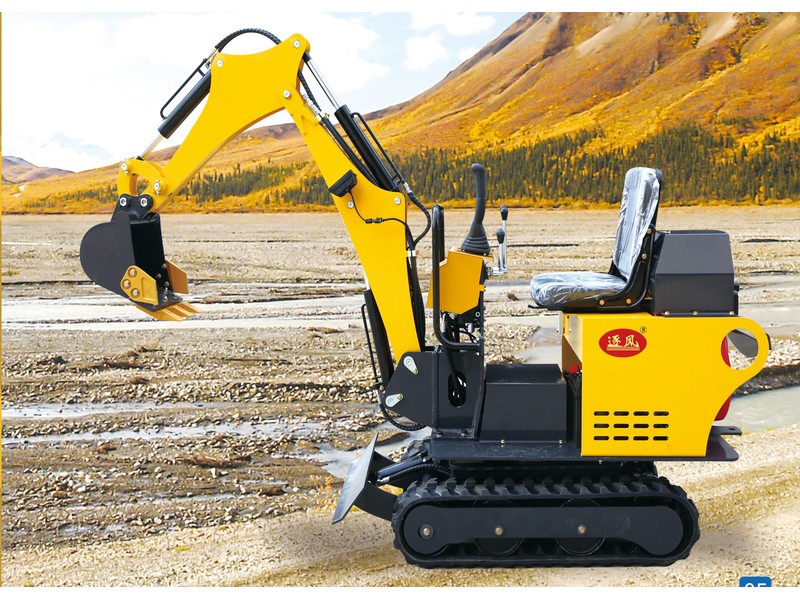

ZM08 Mini Excavator
SKU: ZM08
ZM08 Mini Excavator — Operating weight (kg) 665, Transport length (mm) 2600, Packing length (mm) 2800, Overall width (mm) 720. Supplied by Shandong Zhongmei Engineering Machinery Co., Ltd.
Product Details
Technical Specifications
- Operating weight (kg): 665
- Transport length (mm): 2600
- Packing length (mm): 2800
- Overall width (mm): 720
- Overall height (mm): 2000
- Turntable width (mm): 700 chassis_
- Overall width (mm): 720
- Track width (mm): 150 wheelbase_mm 860 track_gauge_mm 550 platform_ground_clearance_mm 350 min_ground_clearance_mm 100
- Max digging height (mm): 2460
- Max unloading height (mm): 1730
- Max excavation depth (mm): 900 max_vertical_digging_depth_mm 340
- Max digging radius (mm): 2490 min_rotation_radius_mm 1400
- Engine brand: UP 192F emission China II
- Engine power: 8KW/3600rpm horsepower_hp 11 telescopic_side_swing - bucket_size_mm 300
- Bucket capacity (m³): 0.02
Product Overview
The ZM08 Mini Excavator is supplied by Shandong Zhongmei Engineering Machinery Co., Ltd, listed under Earthmoving Machinery / Mini Excavators. Key specifications: Operating weight (kg) 665; Transport length (mm) 2600; Packing length (mm) 2800; Overall width (mm) 720; Overall height (mm) 2000; Turntable width (mm) 700 chassis_.
Key Features
- Operating weight (kg): 665
- Transport length (mm): 2600
- Packing length (mm): 2800
- Overall width (mm): 720
- Overall height (mm): 2000
Applications
- Trenching and fertilising in orchards and greenhouses
- Municipal pipe trench and cable trench excavation
- Small-scale earthmoving and demolition in rural areas
Categories
Earthmoving Machinery / Mini Excavators
Product Details
Product Reference
- Product name: ZM08 Mini Excavator
- SKU / Model code: ZM08
- Categories: Earthmoving Machinery / Mini Excavators
- Supplier: MachEquipPro
