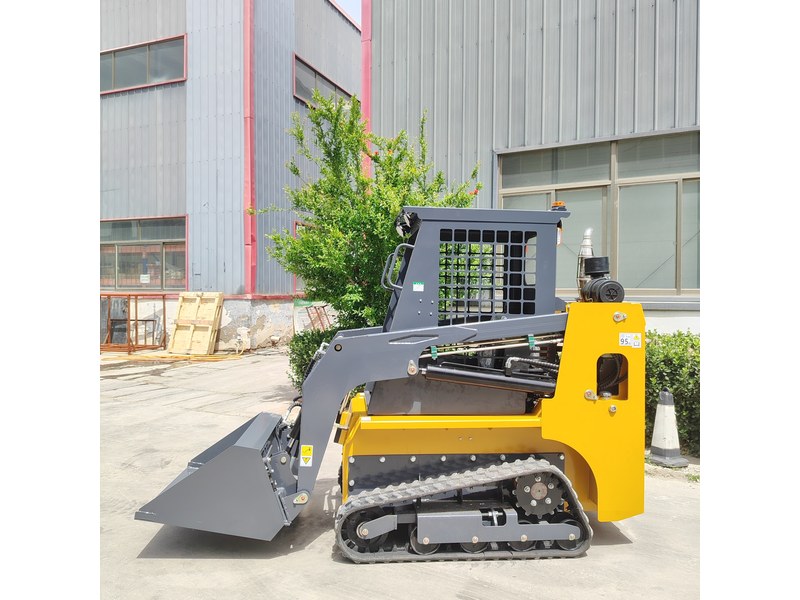

YH25 Skid Steer Loader

Technical Specifications

• Max working height: 3200mm
• Max pin height: 2400mm
• Max discharge height: 1890mm
• Dump reach at max height: 460mm
• Bucket rollback angle on ground: 25°
• Bucket rollback angle at max height: 98°
• Ground clearance: 120mm
• Track width: 710mm
• Length without bucket: 2000mm
• Overall width: 1000mm
• Bucket width: 900mm
• Overall length (with bucket): 2650mm
• Engine brand: Kubota D1105
• Horsepower speed: 25HP/3000rpm
• Fuel tank capacity: 25L
• Hydraulic tank capacity: 20L
• Max load capacity: 500kg
• Bucket volume: 0.25m³
• Max breakout force: 750kg
• Speed: 0-9km/h
• Net weight: Wheeled 1550kg / Crawler 1640kg
• Operating weight: 2000kg
• Climbing angle: 30°
• System pressure: 25MPa
• Standard flow: 33L/min
• Travel pump flow: 75L/min
• Charge pump flow: 10L/min
• Working system: 44L/min
• Chevron industrial tire: 23×8.5-15
• Track model: 180/72/43
• Fumigation-free wooden case packing: 2580*1150*2100mm

Product Overview

The YH25 Skid Steer Loader is supplied by Jining Yuanheng Machinery Manufacturing Co., Ltd, listed under Loaders and Handling Equipment / Skid Steer Loaders. Key specifications: Max working height 3200mm; Max pin height 2400mm; Max discharge height 1890mm; Dump reach at max height 460mm; Bucket rollback angle on ground 25°; Bucket rollback angle at max height 98°.

Key Features

• Max working height: 3200mm
• Max pin height: 2400mm
• Max discharge height: 1890mm
• Dump reach at max height: 460mm
• Bucket rollback angle on ground: 25°

Applications

• Clearing and loading on farms and ranches
• Municipal and landscaping work
• Multi-purpose work in confined sites

Categories

Loaders and Handling Equipment / Skid Steer Loaders
