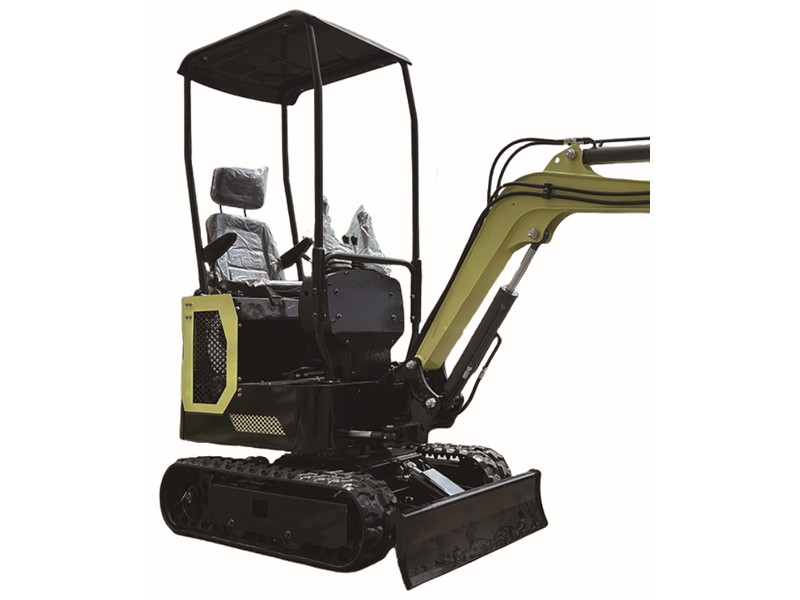

T10-1 Mini Crawler Excavator – Gongwo

Technical Specifications

• Model: T10-1
• Engine: KD192FC-1 / Briggs & Stratton
• Power / speed: 7kw(3000)/10.07kw(3600)
• Emission standard: EURO5 / EPA4
• Bucket capacity: 0.02 m³
• Max digging height: 2600 mm
• Max dump height: 1750 mm
• Max digging depth: 1750 mm
• Track ground contact length: 1220 mm
• Operating weight: 800 kg
• Standard configuration wooden case size: 2900×1030×1600 mm
• Wooden case size (with cab): 2500×1030×2300 mm

Product Overview

The T10-1 Mini Crawler Excavator – Gongwo is supplied by Shandong Gongwo Machinery Co., Ltd, listed under Earthmoving Machinery / Mini Excavators. Key specifications: Model T10-1; Engine KD192FC-1 / Briggs & Stratton; Power / speed 7kw(3000)/10.07kw(3600); Emission standard EURO5 / EPA4; Bucket capacity 0.02 m³; Max digging height 2600 mm.

Key Features

• Model: T10-1
• Engine: KD192FC-1 / Briggs & Stratton
• Power / speed: 7kw(3000)/10.07kw(3600)
• Emission standard: EURO5 / EPA4
• Bucket capacity: 0.02 m³

Applications

• Small building and municipal projects
• Orchard, landscaping and agricultural work
• Indoor demolition and renovation waste removal
• Rental fleets (simple operation, easy relocation)
• Ditch excavation and pipeline construction

Categories

Earthmoving Machinery / Mini Excavators
