QB220 Concrete Mixer
SKU: QB220
QB220 Concrete Mixer — Model QB220, Actual capacity 187L, Mixing speed 28r/min, Motor power 1000W. Supplied by Linyi Zhaotong Machinery Equipment Co., Ltd.
Product Details
Technical Specifications
- Model: QB220
- Actual capacity: 187L
- Mixing speed: 28r/min
- Motor power: 1000W
- Drum opening diameter: 420mm
- Drum diameter: 610mm
- Drum height: 640mm
- Upper drum thickness: 1.7mm
- Lower drum thickness: 2.0mm
- Gross / net weight: 61/56kg
- Carton specification: 865*690*500mm

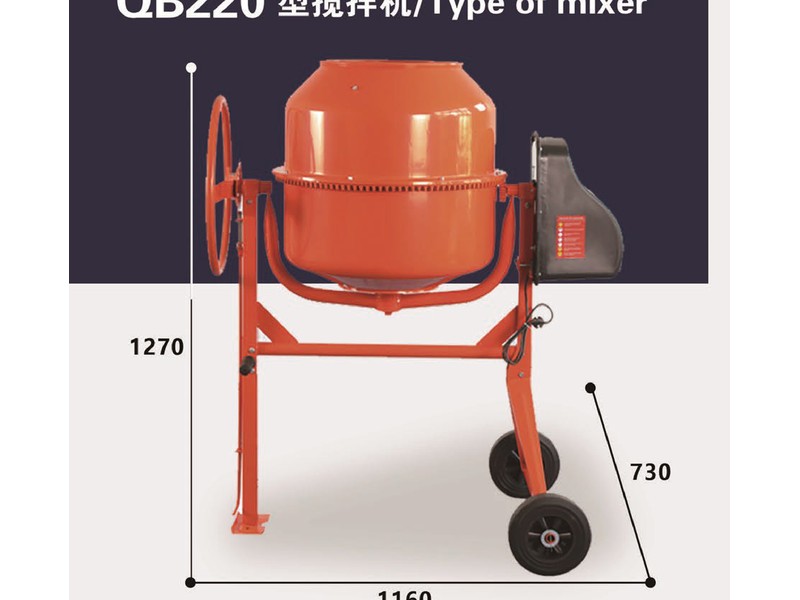

- Machine dimensions: 1160*730*1270mm
Product Overview
The QB220 Concrete Mixer is supplied by Linyi Zhaotong Machinery Equipment Co., Ltd, listed under Road Construction Machinery / Concrete Machinery. Key specifications: Model QB220; Actual capacity 187L; Mixing speed 28r/min; Motor power 1000W; Drum opening diameter 420mm; Drum diameter 610mm.
Key Features
- Model: QB220
- Actual capacity: 187L
- Mixing speed: 28r/min
- Motor power: 1000W
- Drum opening diameter: 420mm
Applications
- On-site concrete mixing at construction sites
- Material mixing for municipal and hydraulic projects
- Precast components and small construction projects
Categories
Road Construction Machinery / Concrete Machinery
Product Details
Product Reference
- Product name: QB220 Concrete Mixer
- SKU / Model code: QB220
- Categories: Road Construction Machinery / Concrete Machinery
- Supplier: MachEquipPro
