QB200 Concrete Mixer
SKU: QB200
QB200 Concrete Mixer — Model QB200, Actual capacity 170L, Mixing speed 28r/min, Motor power 850W. Supplied by Linyi Zhaotong Machinery Equipment Co., Ltd.
Product Details
Technical Specifications
- Model: QB200
- Actual capacity: 170L
- Mixing speed: 28r/min
- Motor power: 850W
- Drum opening diameter: 420mm
- Drum diameter: 610mm
- Drum height: 580mm
- Upper drum thickness: 1.7mm
- Lower drum thickness: 1.8mm
- Gross / net weight: 59/54kg
- Carton specification: 865*690*450mm

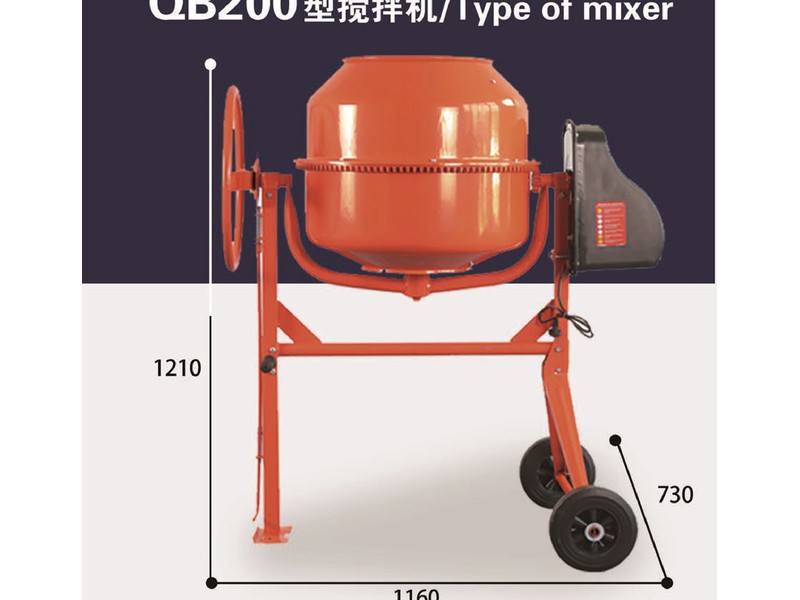

- Machine dimensions: 1160*730*1210mm
Product Overview
The QB200 Concrete Mixer is supplied by Linyi Zhaotong Machinery Equipment Co., Ltd, listed under Road Construction Machinery / Concrete Machinery. Key specifications: Model QB200; Actual capacity 170L; Mixing speed 28r/min; Motor power 850W; Drum opening diameter 420mm; Drum diameter 610mm.
Key Features
- Model: QB200
- Actual capacity: 170L
- Mixing speed: 28r/min
- Motor power: 850W
- Drum opening diameter: 420mm
Applications
- On-site concrete mixing at construction sites
- Material mixing for municipal and hydraulic projects
- Precast components and small construction projects
Categories
Road Construction Machinery / Concrete Machinery
Product Details
Product Reference
- Product name: QB200 Concrete Mixer
- SKU / Model code: QB200
- Categories: Road Construction Machinery / Concrete Machinery
- Supplier: MachEquipPro
