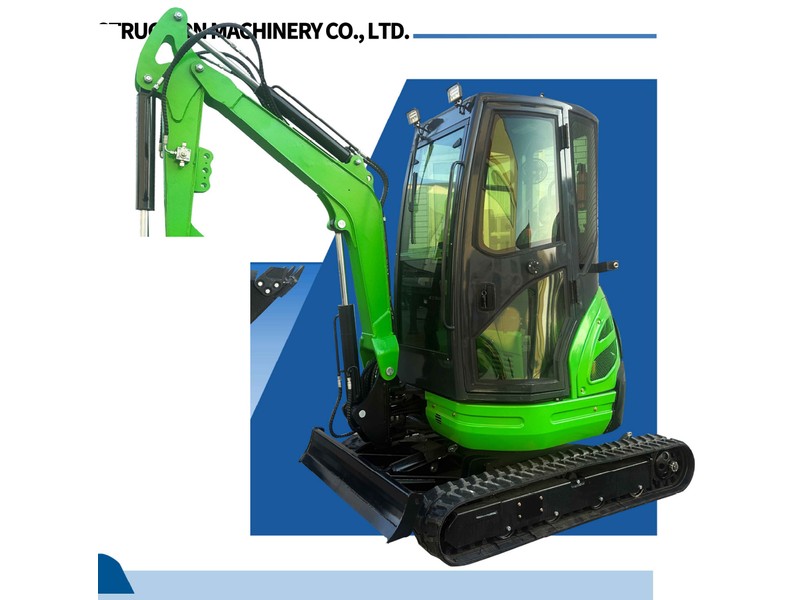

ME22 Mini Excavator
SKU: ME22
ME22 Mini Excavator — Engine model Kubota D902, Power type vertical / water-cooled / four-stroke, Displacement 0.719 L, Rated power 14.9/3600 (kw/rpm). Supplied by Shandong Donggong Engineering Machinery Co., Ltd.
Product Details
Technical Specifications
- Engine model: Kubota D902
- Power type: vertical / water-cooled / four-stroke
- Displacement: 0.719 L
- Rated power: 14.9/3600 (kw/rpm)
- Horsepower: 20.3 HP
- Fuel type: diesel
- Engine oil capacity: 3.8 L
- Operating weight: 2000 kg
- Bucket capacity: 0.05 m³
- Overall dimensions: 3250*1300*2400 mm
- Track ground contact length: 1300 mm
- Track width: 230 mm
- Max digging depth: 2200 mm
- Max dump height: 2300 mm
- Max digging height: 3200 mm
- Gradeability: 30°
- Travel speed: 0-3 km/h
- Bucket digging force: 20 kN
- Engine: optional Kubota D1105
- Configuration: optional
Product Overview
The ME22 Mini Excavator is supplied by Shandong Donggong Engineering Machinery Co., Ltd, listed under Earthmoving Machinery / Mini Excavators. Key specifications: Engine model Kubota D902; Power type vertical / water-cooled / four-stroke; Displacement 0.719 L; Rated power 14.9/3600 (kw/rpm); Horsepower 20.3 HP; Fuel type diesel.
Key Features
- Engine model: Kubota D902
- Power type: vertical / water-cooled / four-stroke
- Displacement: 0.719 L
- Rated power: 14.9/3600 (kw/rpm)
- Horsepower: 20.3 HP
Applications
- Trenching and fertilising in orchards and greenhouses
- Municipal pipe trench and cable trench excavation
- Small-scale earthmoving and demolition in rural areas
Categories
Earthmoving Machinery / Mini Excavators
