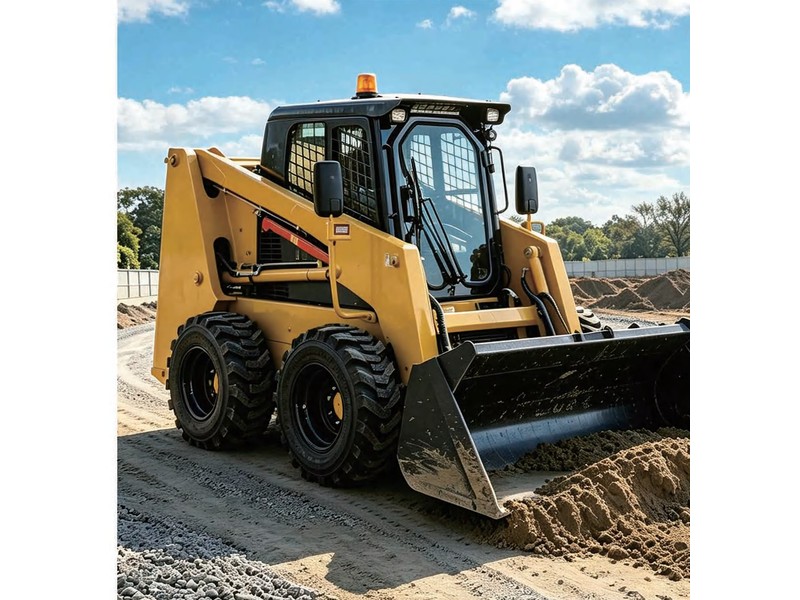

HS75 Skid Steer Loader
SKU: HS75
HS75 Skid Steer Loader — Rated load 950 kg, Tipping load 1900 kg, Operating weight 3300 kg, Engine model Xinchai / Yanmar. Supplied by Shandong Huachen Guanyue Engineering Machinery Co., Ltd.
Product Details
Technical Specifications
- Rated load: 950 kg
- Tipping load: 1900 kg
- Operating weight: 3300 kg
- Engine model: Xinchai / Yanmar
- Output power: 74.5hp/55kw
- Speed: 2500 rpm
- Cooling method: water-cooled
- Control method: hydraulic control
- Tire standard: 10.0-16.5 (12.0-16.5)
- Max speed: 12 km/h
- Hydraulic flow: 70 L/min
- Height: 4270 mm
- Bucket pivot height: 3289 mm
- Cab roof height: 2023 mm
- Bucket max height on ground: 3090 mm
- Overall length (without bucket): 2710 mm
- Overall length (with bucket): 3498 mm
- Max dump height: 2551 mm
- Dump reach: 603 mm
- Wheelbase: 1020 mm
- Departure angle: 24°
- Ground clearance: 185 mm
- Turning radius: 1643 mm
- Body width: 1469 mm
- Track width: 1740 mm
- Bucket cutting edge width: 1800 mm
- Bucket capacity: 0.56 m³
- Diesel tank capacity: 88 L
- Hydraulic tank capacity: 70 L
Product Overview
The HS75 Skid Steer Loader is supplied by Shandong Huachen Guanyue Engineering Machinery Co., Ltd, listed under Loaders and Handling Equipment / Skid Steer Loaders. Key specifications: Rated load 950 kg; Tipping load 1900 kg; Operating weight 3300 kg; Engine model Xinchai / Yanmar; Output power 74.5hp/55kw; Speed 2500 rpm.
Key Features
- Rated load: 950 kg
- Tipping load: 1900 kg
- Operating weight: 3300 kg
- Engine model: Xinchai / Yanmar
- Output power: 74.5hp/55kw
Applications
- Clearing and loading on farms and ranches
- Municipal and landscaping work
- Multi-purpose work in confined sites
Categories
Loaders and Handling Equipment / Skid Steer Loaders
Product Details
Product Reference
- Product name: HS75 Skid Steer Loader
- SKU / Model code: HS75
- Categories: Loaders and Handling Equipment / Skid Steer Loaders
- Supplier: MachEquipPro
