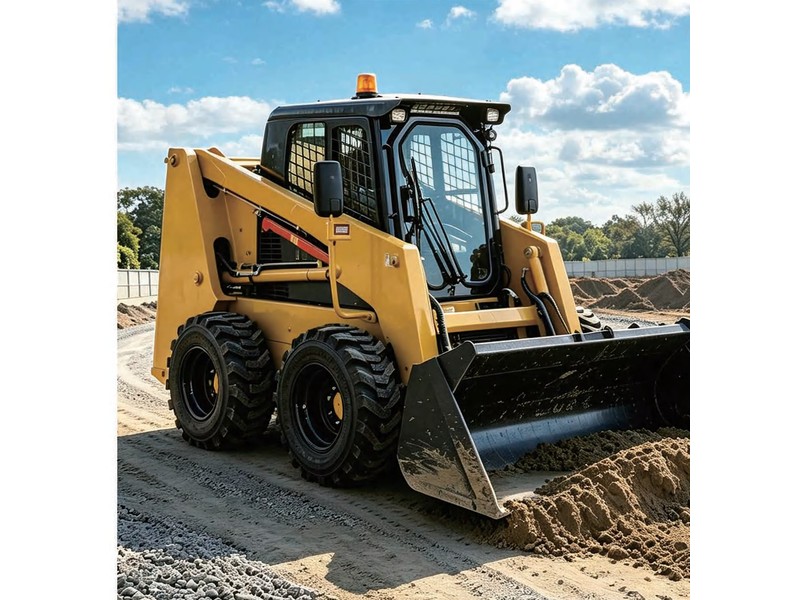

HS50 Skid Steer Loader
SKU: HS50
HS50 Skid Steer Loader — Rated load 760 kg, Tipping load 1500 kg, Operating weight 3003 kg, Engine model Xinchai. Supplied by Shandong Huachen Guanyue Engineering Machinery Co., Ltd.
Product Details
Technical Specifications
- Rated load: 760 kg
- Tipping load: 1500 kg
- Operating weight: 3003 kg
- Engine model: Xinchai
- Output power: 50hp/36.8kw
- Speed: 2500 rpm
- Cooling method: water-cooled
- Control method: hydraulic control
- Tire standard: 10.0-16.5
- Max speed: 12 km/h
- Hydraulic flow: 70 L/min
- Height: 4058 mm
- Bucket pivot height: 3077 mm
- Cab roof height: 2007 mm
- Bucket max height on ground: 2908 mm
- Overall length (without bucket): 2700 mm
- Overall length (with bucket): 3413 mm
- Max dump height: 2303 mm
- Dump reach: 675 mm
- Wheelbase: 999 mm
- Departure angle: 23°
- Ground clearance: 185 mm
- Turning radius: 1627 mm
- Body width: 1469 mm
- Track width: 1740 mm
- Bucket cutting edge width: 1780 mm
- Bucket capacity: 0.35 m³
- Diesel tank capacity: 88 L
- Hydraulic tank capacity: 70 L
Product Overview
The HS50 Skid Steer Loader is supplied by Shandong Huachen Guanyue Engineering Machinery Co., Ltd, listed under Loaders and Handling Equipment / Skid Steer Loaders. Key specifications: Rated load 760 kg; Tipping load 1500 kg; Operating weight 3003 kg; Engine model Xinchai; Output power 50hp/36.8kw; Speed 2500 rpm.
Key Features
- Rated load: 760 kg
- Tipping load: 1500 kg
- Operating weight: 3003 kg
- Engine model: Xinchai
- Output power: 50hp/36.8kw
Applications
- Clearing and loading on farms and ranches
- Municipal and landscaping work
- Multi-purpose work in confined sites
Categories
Loaders and Handling Equipment / Skid Steer Loaders
Product Details
Product Reference
- Product name: HS50 Skid Steer Loader
- SKU / Model code: HS50
- Categories: Loaders and Handling Equipment / Skid Steer Loaders
- Supplier: MachEquipPro
