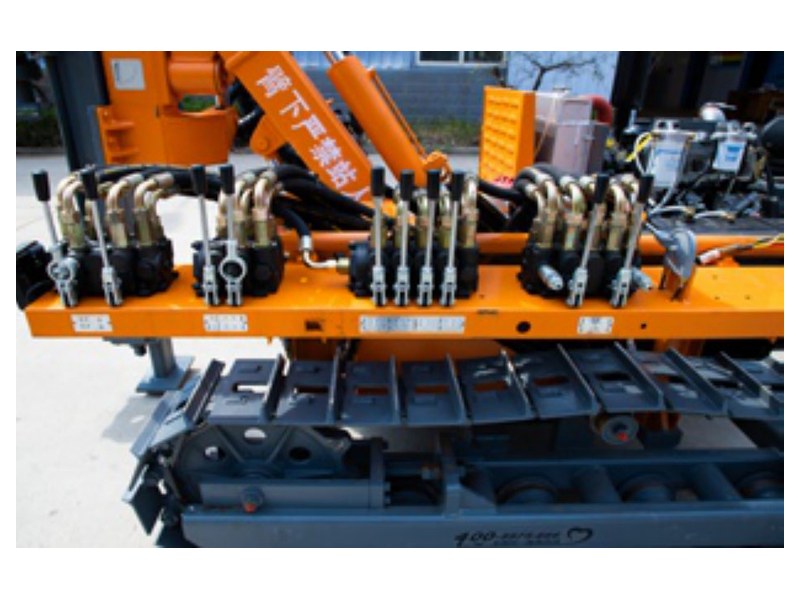

HQZ-400L Steel-Track Pneumatic Drill Rig
SKU: HQZ-400L
HQZ-400L Steel-Track Pneumatic Drill Rig — Model HQZ400L, Mast 3m, Chassis steel track, Drilling diameter (㎜) 130-325. Supplied by Shandong Hengwang Group Co., Ltd.
Product Details
Technical Specifications
- Model: HQZ400L
- Mast: 3m
- Chassis: steel track
- Drilling diameter: (㎜) 130-325
- Drilling depth (m): 400
- Single feed stroke (m): 3.6
- Travel speed (km/h): 2.5
- Max gradeability (unladen): 30
- Engine brand: Yuchai
- Engine power (kW): 92
- Working air pressure (MPa): 1.7-3.5
- Air consumption: (m³/min) 17-35
- Drill rod diameter: (㎜) 89/102/108
- Drill rod length (m): 1.5/2.0/3.0
- Lifting force (t): 25
- Rotation speed (rpm): 45-115
- Rotation torque: (N.m) 7000-9000
- Overall dimensions: (㎜) 5400*2200*2500
Product Overview
The HQZ-400L Steel-Track Pneumatic Drill Rig is supplied by Shandong Hengwang Group Co., Ltd, listed under Drilling and Piling Equipment / DTH Hammers and Core Drills. Key specifications: Model HQZ400L; Mast 3m; Chassis steel track; Drilling diameter (㎜) 130-325; Drilling depth (m) 400; Single feed stroke (m) 3.6.
Key Features
- Model: HQZ400L
- Mast: 3m
- Chassis: steel track
- Drilling diameter: (㎜) 130-325
- Drilling depth (m): 400
Applications
- Blasting hole drilling in open-pit mines
- Rock works and foundation pit drilling
- Foundation holes for water conservancy and power projects
- Rural roads and small earthwork projects
Categories
Drilling and Piling Equipment / DTH Hammers and Core Drills
Product Details
Product Reference
- Product name: HQZ-400L Steel-Track Pneumatic Drill Rig
- SKU / Model code: HQZ-400L
- Categories: Drilling and Piling Equipment / DTH Hammers and Core Drills
- Supplier: MachEquipPro
