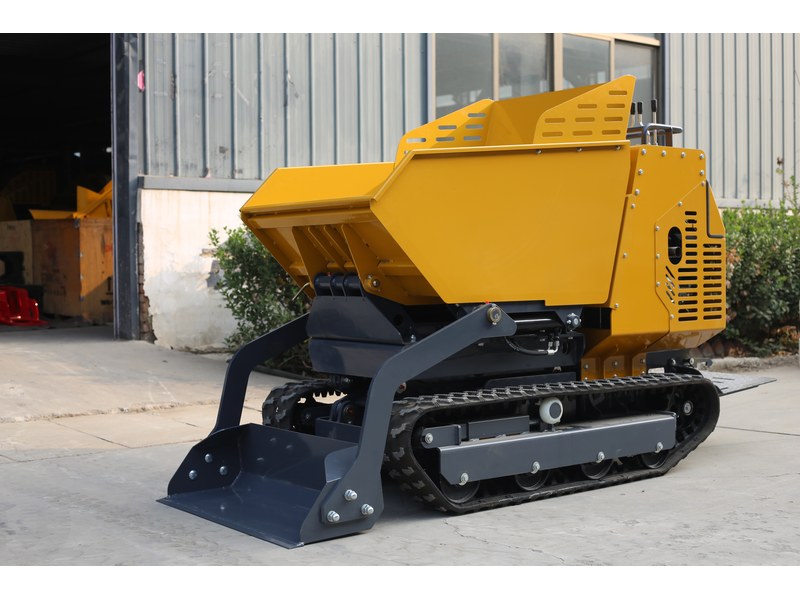

YH-1000 Mini Dump Truck

Technical Specifications

• Net weight: 880kg
• Max load capacity: 1000kg
• Cargo box capacity: 450dm³
• Chassis width: 850mm
• Track width: 180mm
• Track ground contact length: 1000mm
• Chassis ground clearance: 110mm
• Hydraulic: self-dumping
• Dump angle: 90°
• Max lift: 1500mm
• Discharge ground clearance: 1300mm
• Tipping distance: 300mm
• Travel speed: 5km/h
• Min turning radius: 1300mm
• Track centre distance: 670mm
• Gradeability: 20°
• Engine model: Briggs & Stratton 25T2
• Power type: single-cylinder air-cooled four-stroke
• Total displacement: 420CC
• Rated power: 13.5HP/3600rpm
• Fuel type: 92# gasoline
• Fuel tank capacity: 6.5L
• Engine: optional Briggs & Stratton 25T2 / Kop 192 / Honda GX390 / Runtong 420cc ( others
• Engine: please enquire separately )
• Overall dimensions: 2500*900*1560mm
• Cargo box / tank dimensions: 1250*780*500mm
• Fumigation-free wooden case packing: 2100*1090*1580mm
• Steel frame stack packing: 2050*960*2500mm

Product Overview

The YH-1000 Mini Dump Truck is supplied by Jining Yuanheng Machinery Manufacturing Co., Ltd, listed under آلات تحريك التربة / Mini Dump Trucks. Key specifications: Net weight 880kg; Max load capacity 1000kg; Cargo box capacity 450dm³; Chassis width 850mm; Track width 180mm; Track ground contact length 1000mm.

Key Features

• Net weight: 880kg
• Max load capacity: 1000kg
• Cargo box capacity: 450dm³
• Chassis width: 850mm
• Track width: 180mm

Applications

• Material handling in narrow orchards, farmland and hillside sites
• Short-haul transfer on construction sites and in sand and gravel yards
• Clearing at livestock farms and waste transfer
