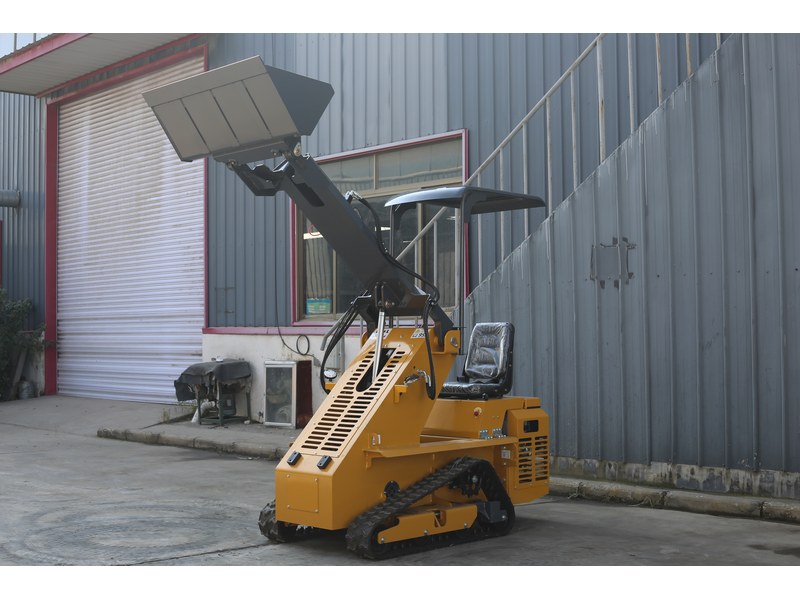

YH800 Skid Steer Loader

Technical Specifications

• Max working height: 2600mm
• Max pin height: 2100mm
• Max discharge height: 1770/2000mm
• Dump reach at max height: 200mm
• Bucket swing angle: 55°
• Bucket dump angle: 30°
• Height: 2100mm
• Ground clearance: 140mm
• Wheelbase: 950mm
• Overall length (without bucket): 2180mm
• Overall length (with bucket): 2680mm
• Overall width: 1000mm
• Bucket width: 1000mm
• Engine brand: Briggs & Stratton 25T2
• Horsepower speed: 13.5HP/3600rpm
• Fuel tank capacity: 6.5L
• Hydraulic tank capacity: 20L
• Engine: optional Briggs & Stratton 25T2 / Changchai 192 / Kop 192 / Runtong 4200
• Max load capacity: 300kg
• Bucket volume: 0.15m³
• Max breakout force: 450kg
• Net weight: Wheeled 780kg / Crawler 850kg
• Operating weight: 1100kg
• Climbing angle: 30°
• System pressure: 17MPa
• Standard flow: 25L/min
• Travel pump flow: 22L/min
• Charge pump flow: 10L/min
• Working system: 44L/min
• Chevron industrial tire: 18×8.5-8
• Track model: 180/60/46
• Fumigation-free wooden case packing: 2280*1140*1420mm
• Steel frame stack packing: 2250*1050*2550mm

Product Overview

The YH800 Skid Steer Loader is supplied by Jining Yuanheng Machinery Manufacturing Co., Ltd, listed under Loaders and Handling Equipment / Skid Steer Loaders. Key specifications: Max working height 2600mm; Max pin height 2100mm; Max discharge height 1770/2000mm; Dump reach at max height 200mm; Bucket swing angle 55°; Bucket dump angle 30°.

Key Features

• Max working height: 2600mm
• Max pin height: 2100mm
• Max discharge height: 1770/2000mm
• Dump reach at max height: 200mm
• Bucket swing angle: 55°

Applications

• Clearing and loading on farms and ranches
• Municipal and landscaping work
• Multi-purpose work in confined sites

Kategori

Loaders and Handling Equipment / Skid Steer Loaders
