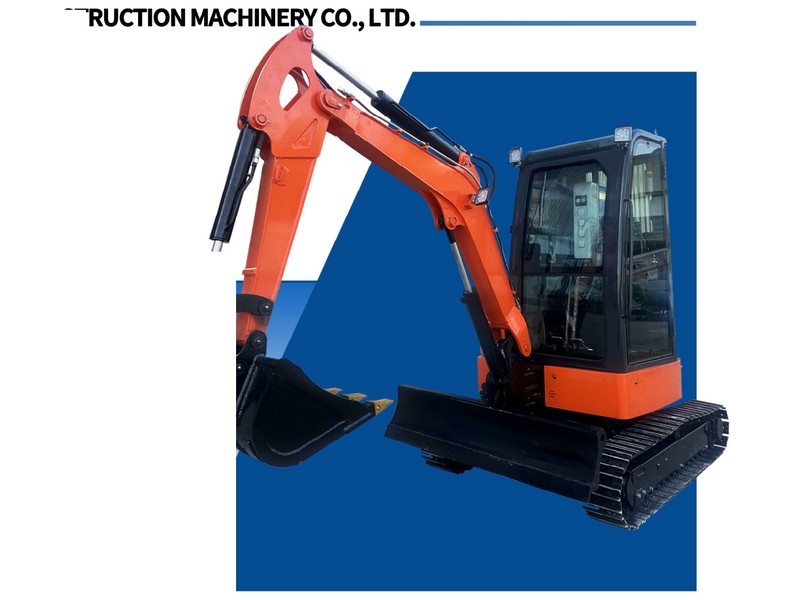

ME35A Mini Excavator

Technical Specifications

• Engine brand: Yanmar-3TNV80F
• Max power: 14.6 KW
• Max speed: 2400 rpm
• Cylinders: 3
• Cooling method: water-cooled
• Rated setting pressure: 24.5 MPa
• Flow rate: 32 L/min
• Fuel tank: 31.5 L
• Hydraulic tank: 29 L
• Travel speed: 0-1.8 km/h
• Operating weight: 2550 kg
• Max digging height: 4155 mm
• Max dump height: 2840 mm
• Max digging depth: 2456 mm
• Max digging radius: 4520 mm
• Overall length: 4077 mm
• Overall width: 1500 mm
• Overall height: 2450 mm
• Bucket capacity: 0.068 m³

Product Overview

The ME35A Mini Excavator is supplied by Shandong Donggong Engineering Machinery Co., Ltd, listed under Jentera kerja tanah / Jengkaut mini. Key specifications: Engine brand Yanmar-3TNV80F; Max power 14.6 KW; Max speed 2400 rpm; Cylinders 3; Cooling method water-cooled; Rated setting pressure 24.5 MPa.

Key Features

• Engine brand: Yanmar-3TNV80F
• Max power: 14.6 KW
• Max speed: 2400 rpm
• Cylinders: 3
• Cooling method: water-cooled

Applications

• Trenching and fertilising in orchards and greenhouses
• Municipal pipe trench and cable trench excavation
• Small-scale earthmoving and demolition in rural areas

Kategori

Jentera kerja tanah / Jengkaut mini
