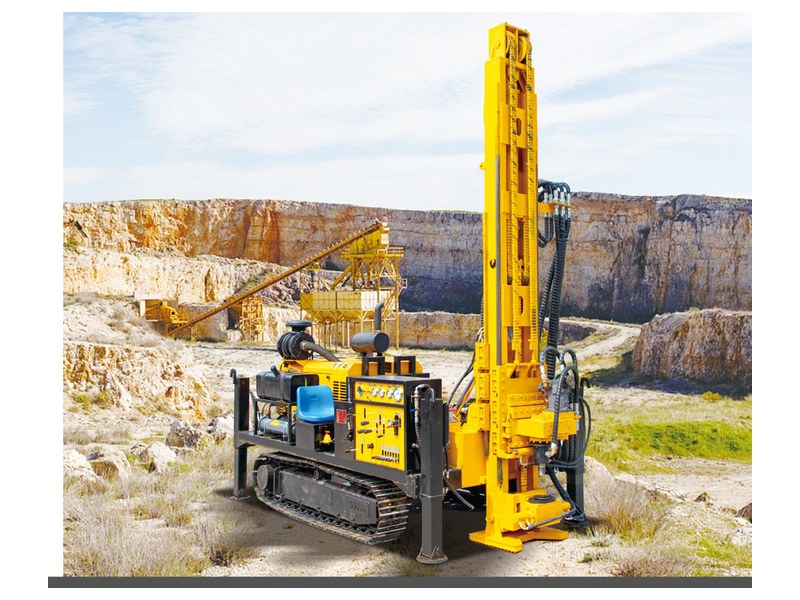

HW-120 DTH Drill Rig
SKU: HW-120
HW-120 DTH Drill Rig — Drilling depth 80-100 m, Drilling diameter 76-300 mm, Drill rod specification 60 mm, Power 5.5 KW. Supplied by Shandong Hengwang Group Co., Ltd.
Butiran produk
Technical Specifications
- Drilling depth: 80-100 m
- Drilling diameter: 76-300 mm
- Drill rod specification: 60 mm
- Power: 5.5 KW
- Main unit length: 1980 mm
- Working pressure: 0.8 MPa
- Own weight: 275 KG
- DTH hammer: 90
- Drill bit: 90
Product Overview
The HW-120 DTH Drill Rig is supplied by Shandong Hengwang Group Co., Ltd, listed under Drilling and Piling Equipment / DTH Hammers and Core Drills. Key specifications: Drilling depth 80-100 m; Drilling diameter 76-300 mm; Drill rod specification 60 mm; Power 5.5 KW; Main unit length 1980 mm; Working pressure 0.8 MPa.
Key Features
- Drilling depth: 80-100 m
- Drilling diameter: 76-300 mm
- Drill rod specification: 60 mm
- Power: 5.5 KW
- Main unit length: 1980 mm
Applications
- Blasting hole drilling in open-pit and underground mines
- Engineering anchor hole drilling
- Ground treatment and slope treatment
- Geological survey and water resource development
- Mine exploration, oil and gas well construction and tunnel excavation
Kategori
Drilling and Piling Equipment / DTH Hammers and Core Drills
Butiran produk
Rujukan produk
- Product name: HW-120 DTH Drill Rig
- SKU / Model code: HW-120
- Kategori: Drilling and Piling Equipment / DTH Hammers and Core Drills
- Pembekal: MachEquipPro
